ZKTeco | Walk-Through Metal Detector

Key Features

Model: ZK-D1065S
Detection Zones: 6 zones (typically displayed on both sides)
Power Supply: AC 100V-240V, 50/60Hz
Power Consumption: Typically less than 35W
Dimensions: Varies, but typically designed for easy installation and portability
Weight: Varies based on model and configuration
Country of Origin: China

Warranty: 01 Year

Call/WhatsApp Us: +880 1810-191925
Compare
Add to wishlist
Category:
Description

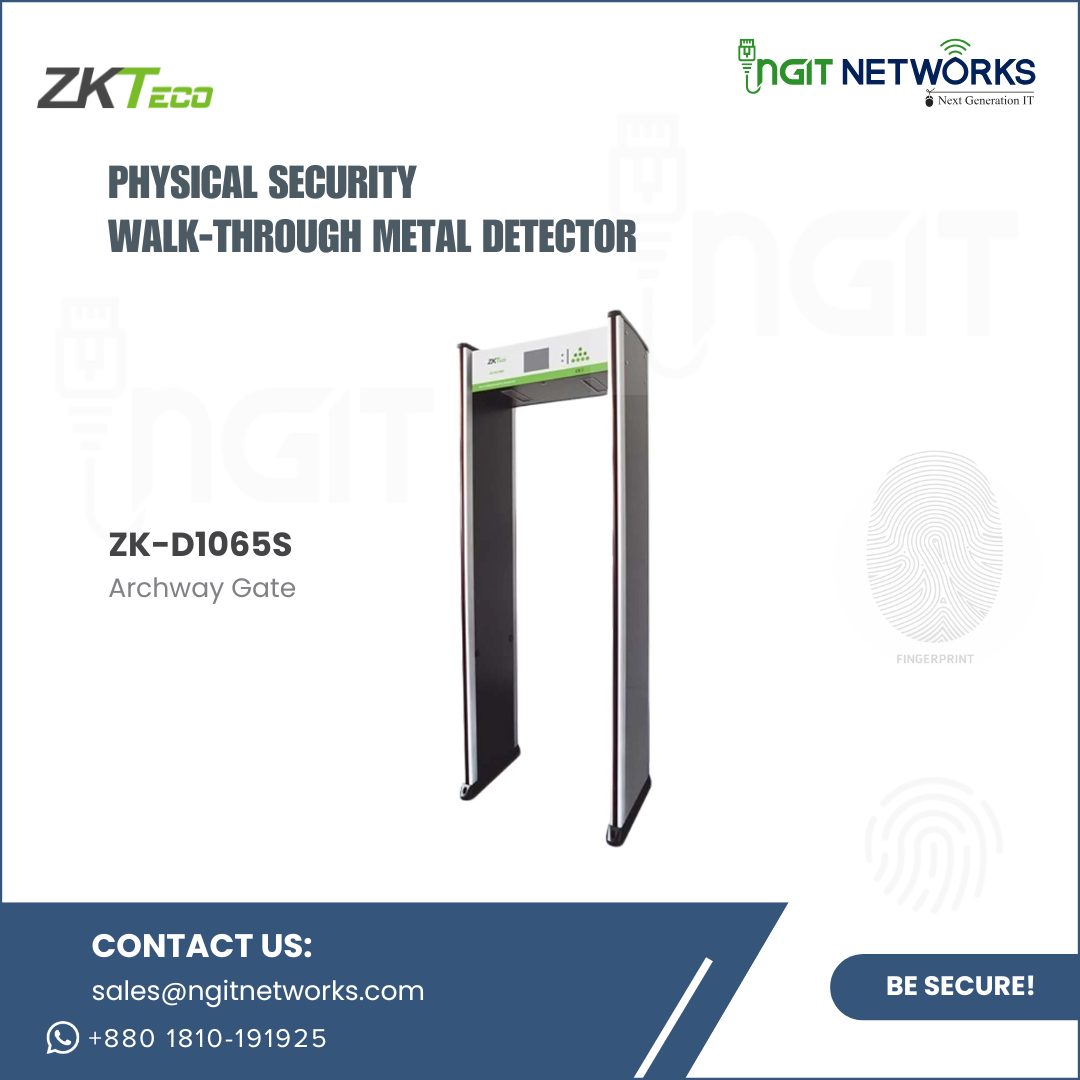

ZKTeco, Walk Through 6-Zone Archway Metal Detector

The ZKTeco ZK-D1065S is a 6-Zone Walk-Through Metal Detector, widely used for security screening purposes in various environments such as airports, offices, schools, and public events. The ZK-D100S is perfect for use in a range of settings, including factories, educational institutions, and other public places. It can help prevent the loss of valued objects in factories, and in educational settings, it can prevent the use of cheat tools such as electronic dictionaries and telephones.

Benefits:
  • Enhanced Security Screening
  • Reliable Detection Capabilities
  • User-Friendly Operation
  • Robust Construction and Design
  • Versatile Applications
  • Optional Features
  • Cost-Effective Security Solution
Shipping & Delivery
Specifications

General Specifications

  • Model: ZK-D1065S
  • Detection Zones: 6
  • Sensitivity Levels: Adjustable
  • Detection Method: Pulse induction
  • Power Supply: AC 100V to 240V, 50/60Hz
  • Power Consumption: ≤ 18W
  • Dimensions:
    • Height: 2200 mm (86.6 inches)
    • Width: 700 mm (27.6 inches)
    • Depth: 500 mm (19.7 inches)
  • Weight: 45 kg (99 lbs)
  • Material: High-quality ABS plastic and metal frame

Detection Performance

  • Sensitivity Range: Adjustable from 0 to 255, allowing for detection of both large and small metallic objects.
  • Passage Width: 800 mm (31.5 inches) for convenient screening of individuals with bags or items.
  • Alarm System: Audio (adjustable volume) and visual (LED lights) indicators to notify security personnel of detected metallic objects.
  • Detection Speed: Capable of screening up to 30 people per minute, depending on sensitivity settings.

Environmental

  • Operating Temperature: -20°C to 45°C (-4°F to 113°F)
  • Operating Humidity: 5% to 95% (non-condensing)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Storage Humidity: 5% to 95% (non-condensing)

Security Features

  • Harmless to Users: Safe for people with pacemakers and other medical devices; does not interfere with magnetic cards, credit cards, or electronic devices.
  • Electromagnetic Interference (EMI): Resistant to external electromagnetic interference for reliable detection performance in various environments.
  • Tamper Alarm: The system includes a tamper alarm for unauthorized access to the device.
